#+title:Flora in Conversation

An audio visual event exploring the interface between nature and technology.

Projects

• S-100 Series Modular Synthesizer
• ESP32 Sequencer

Diagrams

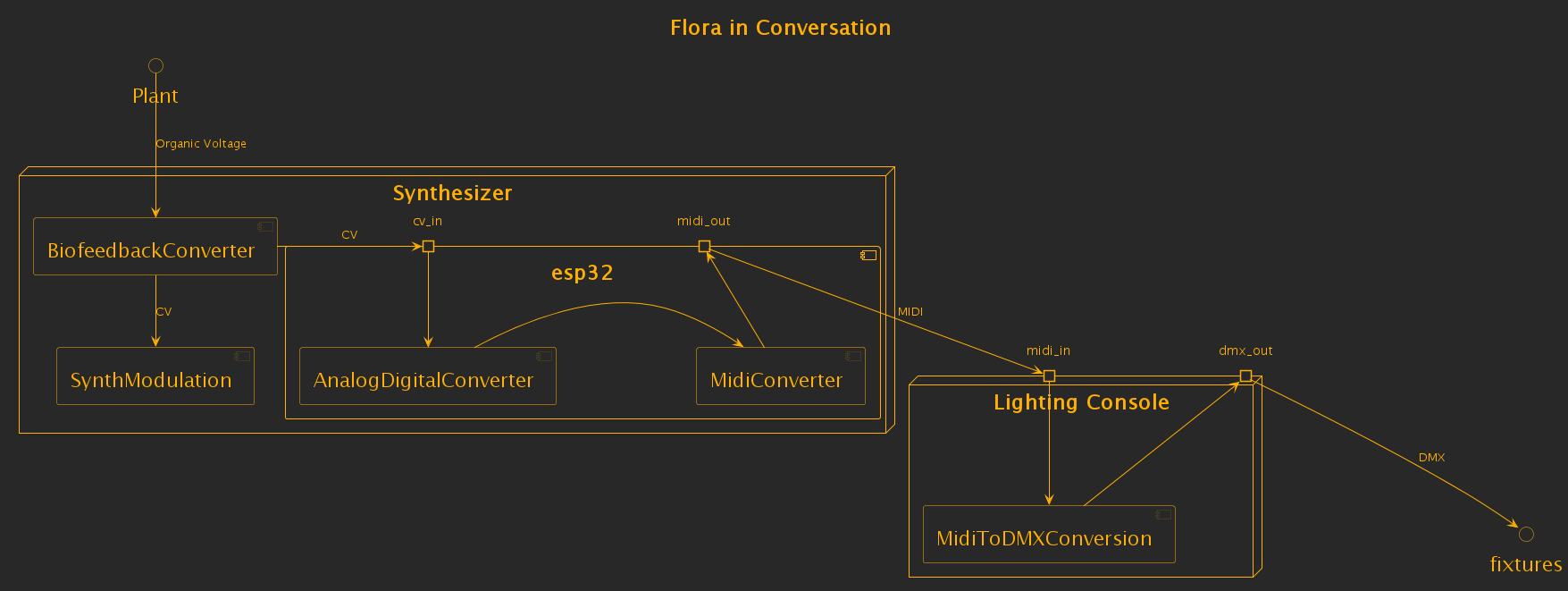

@startuml
!theme crt-amber

title Flora in Conversation


node "Synthesizer" {

  Component esp32 {
    port cv_in
    port midi_out
    cv_in --> [AnalogDigitalConverter]
    [AnalogDigitalConverter] -> [MidiConverter]
    [MidiConverter] --> midi_out
  }

  [BiofeedbackConverter] --> [SynthModulation]: CV
  [BiofeedbackConverter] -> cv_in: CV
}

Plant --> [BiofeedbackConverter]: Organic Voltage

node "Lighting Console" {
  port midi_in
  port dmx_out
  midi_in --> [MidiToDMXConversion]
  [MidiToDMXConversion] --> dmx_out
}

midi_out --> midi_in: MIDI
dmx_out --> fixtures: DMX

@enduml
